Improving Reliability in Larger Zigbee Networks Using Zigbee Groups

The Problem

With around 150 devices in my home, I started experiencing issues where some lamps wouldn’t turn on or off as expected. After some investigation 🔍, I discovered that the high traffic on the network was causing these reliability issues. This is a common problem in larger Zigbee networks, where the sheer volume of messages can overwhelm the network.

Solution: Using Zigbee Groups with Zigbee2MQTT

Zigbee groups are defined at the network level. Instead of sending a message to each device individually, you can send a single message to a group, which significantly reduces the amount of traffic on the network. By grouping devices that are often controlled together, you can streamline your network and improve its reliability. I use Zigbee2MQTT to manage my Zigbee network, which makes it easy to define and control these groups.

By using Zigbee groups, you can control multiple devices simultaneously with one command. Groups are much more efficient than controlling devices separately as it significantly reduces the stress on a network when controlling multiple devices at once.

Benefits of Zigbee Groups

• Improved Reliability: After grouping my lamps, I noticed a significant improvement in reliability. The lamps now respond consistently to commands. 💡
• Simplified Automations: Creating logical groups of devices has simplified my automations. Instead of sending multiple commands to individual devices, I can now control entire groups with a single command. 🔄
• Scalability: With the improved reliability, I managed to add even more devices to my network without experiencing the earlier issues. 📈

Implementation with Zigbee2MQTT

Here’s a step-by-step guide on how to create Zigbee groups in Zigbee2MQTT:

1. Access Configuration: Open the configuration.yaml file in Zigbee2MQTT. 🛠️
2. Define Groups: Add your groups under the groups section. For example:

groups:
  '1':
    friendly_name: 'Living Room Lights'
    devices:
      - '0x00124b0018e8a2d1'
      - '0x00124b0018e8a2d2'
  '2':
    friendly_name: 'Kitchen Lights'
    devices:
      - '0x00124b0018e8a2d3'
      - '0x00124b0018e8a2d4'

3. Restart Zigbee2MQTT: Save the file and restart Zigbee2MQTT to apply the changes. 🔄
4. Control Groups: Use MQTT commands to control the groups, such as turning all lights in a group on or off. You can also use the groups directly from Home Assistant for seamless integration with your smart home setup. 🏡

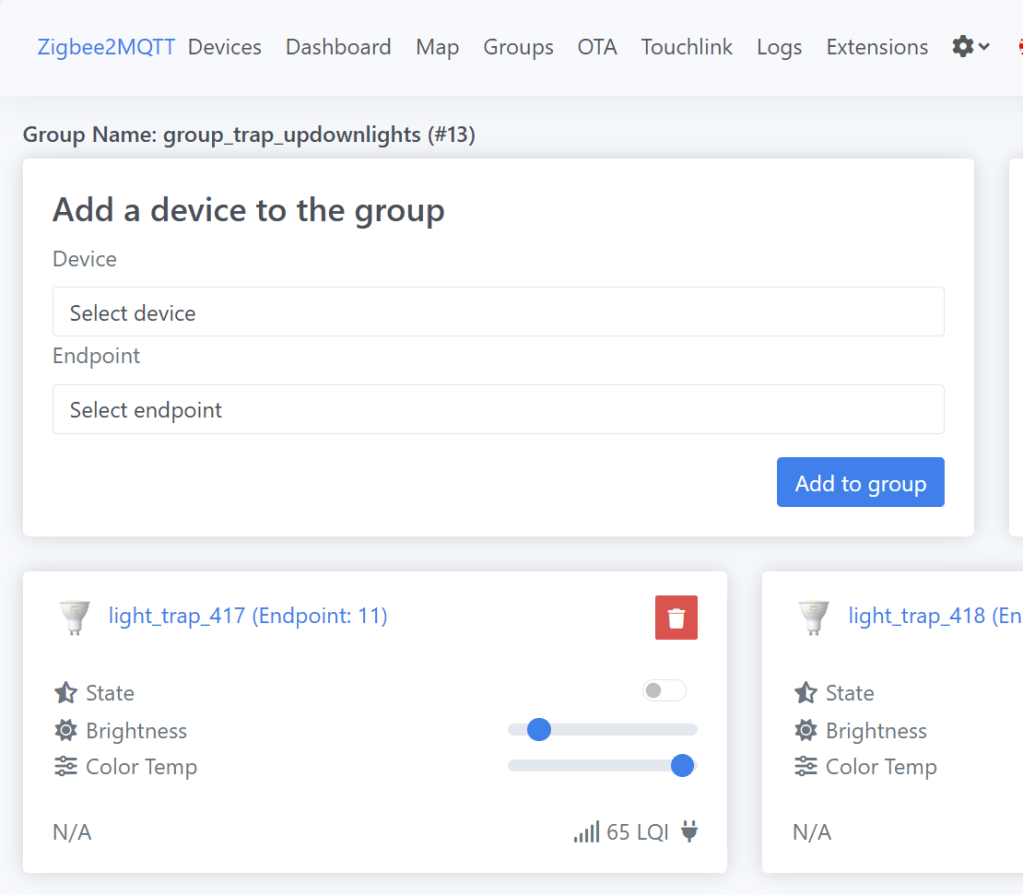

You can also manage your groups through the Zigbee2MQTT UI, making it even easier to organize and control your devices. 🖥




Conclusion

Using Zigbee groups has greatly improved the reliability of my large Zigbee network. By reducing network traffic and simplifying automations, I’ve been able to create a more efficient and scalable smart home setup. While Zigbee groups were a significant part of the solution, they were just one of the steps I took to enhance reliability. If you’re experiencing similar issues, I highly recommend giving Zigbee groups a try. Plus, your smart home will thank you for the reduced stress—no more lamps throwing a tantrum because they didn’t get the memo! 😄💡
